Brass Flared Fittings

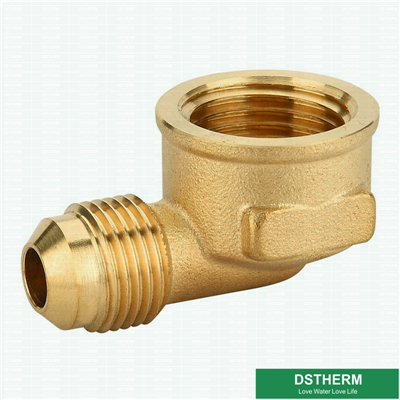

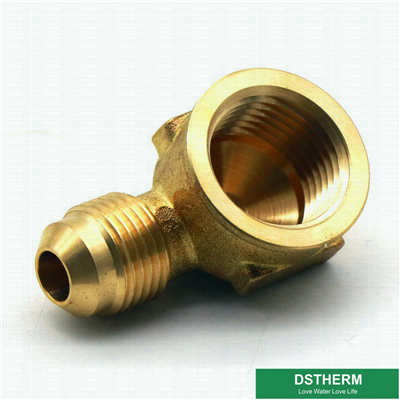

  • Flared Fittings Brass Flared Female Threaded Elbow
  • Flared Fittings Brass Flared Female Threaded Elbow
Flared Fittings Brass Flared Female Threaded ElbowFlared Fittings Brass Flared Female Threaded Elbow

Flared Fittings Brass Flared Female Threaded Elbow

  • Customized Designs
  • Brass CW617N
  • Dstherm & OEM Brand
  • EN BS Standard
  • Product description: Flared Fittings Brass Flared Female Threaded Elbow
  • INQUIRY



1. Grade: HPB58-3A , HPB59-1

2. Size:

1/8'' , 3/16'',1/4'' , 3/8'' , 1/2'' ,5/8'', 3/4'' , 1''

3. Standard: BSPP BSPT NPT NPS UNF UNEF UNC

4. Technology : Forged and CNC machining

45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.

Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning

Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters



Product Description




Product Range
Brass Pipe Fittings
Brass Plumbing Fittings
Brass Hose Fittings
Brass Gas Fittings
Brass Tube Fittings
Brass Hydraulic Fittings
Brass Compression Fittings
Brass Barb Fittings
Brass Flare Fittings
Brass PPR Fittings
Brass Valves & CocksFittings
Brass CPVC Fittings





Material:
Brass Alloy
CuZn39Pb3 / CuZn39Pb2 / CuZn38Pb1.5 / CuZn37Pb2 / CuZn40Pb2 / MS 58 / BS2874 / IS 319 (Type I & II).
UNS (ASTM)
C35300 / C35330 DZR / C36000 (CDA 360) / C36500 / C37000 / C37100 / C37700 / C37710 / C38500.
BS
CZ121 / CZ122 / CZ124 / CZ128 / CZ 131 / CZ132.
EN
CW602N / CW603N / CW606N / CW608N / CW612N / CW614N / CW617N
IS
C3601 / C3602 / C3603 / C3604 / C3605 / C3712 / C3771
Any special brass material compositions as per the customer’s requirement.
Thread :
ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads Any threads as per client
specification.
Size :
Sizes available from M2 to M30 and up to M36, and 1/8’’, 5/32’’, 3/16’’, 1/4’’,5/16’’, 3/8’’, 1/2’’, 3/4’’, 1’’, 1-1/2”, 2” and
as per Custom Designs and requirements.
Finish & Coating :
Natural Clean / Nickel Plated / Electro-Tin Plated / Silver Plated / Copper Plated / Zinc Plated / Chrome Plated / Specified
Surface Finish.
Application :
Fittings, Plastic molding injection, Telecommunications, and instrumentation.
Supply Ability:
500000 Pieces per month.

Custom configurations and sizes are available upon request. Contact us for additional information.


BRASS PIPE FITTING

Brass Pipe Fittings are made of brass bar or forging brass, consist of a wide variety of components, such as nipple, reduction pieces, hose connection, plug, street elbow, Elbow and cross fittings etc. Our brass pipe fittings all meet specifications and standards of ASA, ASME and SAE. Our brass pipe fittings are manufactured for low and medium pressure pipe line connections. The fluid can be water, refrigeration, instrumentation, hydraulic systems, grease, fuels, LP and natural gas. Accommodate thread sizes ranging from 1/8 to2 inch.


Fluid Admitted Water, Refrigeration, Instrumentation, Hydraulic Systems, Grease, Fuels, LP, Natural Gas

Max Working Pressure 8.0MPa | 1200psi

Working Temperature -53°C-121°C | -65°F-250°F

Body Brass & Nickel Plated Brass

Applicable Tube Brass, Bronze, Copper, Steel, Aluminum, Iron Pipe



Advantages

1. 20 Years production experience, Stable &Excellent Quality of our products.
2.Mateial are 100% new raw material, never use recycled material.
3.Sales staffs have 6 -10 years pipe-line system specialized experience,can give the smart and excellent serice and suggestion.
4.Whole product range for pipes,pipe fittings,valves and tools like cutters,welding machines,clamps from 20-160mm all offered.This save your time and costs to collect all items from different suppliers.
5.After-sale service: 24hrs online consultation after-sales,and we accept all conditons for compensation if there any quality issue.

6.we assure our pipes and fittings with 50 years usage life If any quality problem,we agree to accept client's all the claims for compensation.

7.Certifications:CE,ISO

8.OEM Accepted
